| MOQ: | 1 |
| giá bán: | có thể đàm phán |
| bao bì tiêu chuẩn: | Thùng carton |
| Thời gian giao hàng: | Có thể thương lượng |
| phương thức thanh toán: | T/t |
| khả năng cung cấp: | Hơn 500 chiếc+còn hàng |

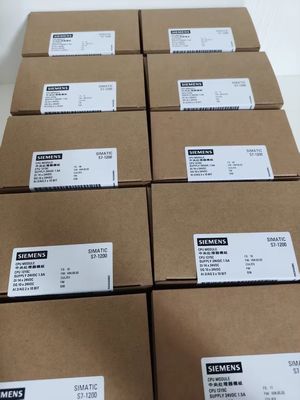

6ES7215-1AG40-0XB0
CPU, 2 analog inputs/2 analog outputs, 14 digital inputs/10 digital outputs, 24 VDC, IP20, SIMATIC S7-1200 series
Product Overview
The 6ES7215-1AG40-0XB0 is a SIMATIC S7-1200 compact CPU, certified by UL and cULus.
STEP 7 V18 or higher version programming suite
The rated value is 24VDC, with a rated current consumption of 500mA (only CPU)
Maximum current consumption of 1500mA (CPU with all expansion modules)
Typical power consumption: 12W, integrated with 200KB working memory
4Mbyte integrated load memory, maximum daily deviation of ±60 cycles/month at 25°C
The maximum switching frequency is 100KHz (switching frequency for pulse output with resistive load)
Maximum transmission rate: 100 Mbit/s, IP20 protection rating
Width 130mm, height 100mm, depth 75mm
Operating temperature range: -20°C to 60°C
|
|
