| MOQ: | 1 CÁI |
| giá bán: | có thể đàm phán |
| bao bì tiêu chuẩn: | Bao bì gốc |
| Thời gian giao hàng: | theo yêu cầu |
| phương thức thanh toán: | T/T |
| khả năng cung cấp: | 5000 chiếc / tháng |
7MF0340-1ML01-5TM1-Z A00+B20+E48+H02+Y01+Y15 Pressure Transmitter
| EAN | Not available |
| Commodity Code | 90328100 |
| Net Weight | 4kg |

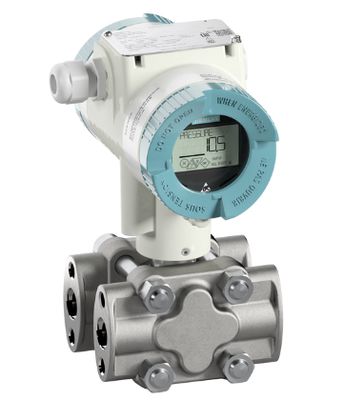

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1600 mbar (643 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device Intrinsic safety, Explosion proof, Dust ignition proof zone 21/22 (DIP), increased safety zone 2, class division 2 x 1/2-14 NPT With display (closed lid) Cable gland and sealing plug attached, metal Labeling type plate English - psi Quality inspection certificate - 5 point factory calibration (IEC 60770-2) CSA (Canada) & FM (USA) Mounting bracket, stainless steel 1.4301/304 Measuring range setting: Lower range value (max. 5 characters), Upper range value (max. 5 characters), Unit (mbar, bar, kPa, MPa, psi, ...) Example: -0.5 ... 10.5 psi (stainless steel plate) Location designation (Tag) (stainless steel plate. device parameters. max. 32 characters) TAG plate without marking please order via option D40
|
|
| MOQ: | 1 CÁI |
| giá bán: | có thể đàm phán |
| bao bì tiêu chuẩn: | Bao bì gốc |
| Thời gian giao hàng: | theo yêu cầu |
| phương thức thanh toán: | T/T |
| khả năng cung cấp: | 5000 chiếc / tháng |
7MF0340-1ML01-5TM1-Z A00+B20+E48+H02+Y01+Y15 Pressure Transmitter
| EAN | Not available |
| Commodity Code | 90328100 |
| Net Weight | 4kg |
SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1600 mbar (643 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device Intrinsic safety, Explosion proof, Dust ignition proof zone 21/22 (DIP), increased safety zone 2, class division 2 x 1/2-14 NPT With display (closed lid) Cable gland and sealing plug attached, metal Labeling type plate English - psi Quality inspection certificate - 5 point factory calibration (IEC 60770-2) CSA (Canada) & FM (USA) Mounting bracket, stainless steel 1.4301/304 Measuring range setting: Lower range value (max. 5 characters), Upper range value (max. 5 characters), Unit (mbar, bar, kPa, MPa, psi, ...) Example: -0.5 ... 10.5 psi (stainless steel plate) Location designation (Tag) (stainless steel plate. device parameters. max. 32 characters) TAG plate without marking please order via option D40
